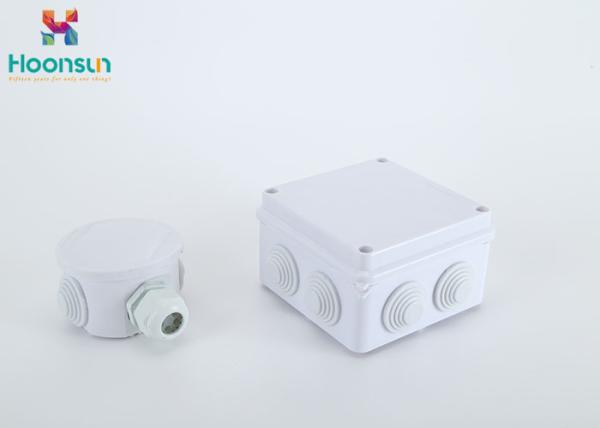

RA / B Series Cable Gland Accessories / Electrical Waterproof
Junction Box
Body material : ABS
Stopper material: PVC
Material characteristics: Impact,heat,low temperature and chemical resistance,excellent
electrical performance and surface gloss,etc.
Certificates: CE,ROHS
Protection grade: IP65
Application:
Suitable for indoor and outdoor electric,communication,fire
fighting apparatus,iron and steel smelting,petrochemical
industry,electron,power system,railway,building,mine,air and sea
port,hotel,ship,works,waste water treatment equipment,environment
equipment nad so on.
Installation:
- Inside:There are the installation holes in the base for circuit
board or din rail(More than 2 pcs of M4 brass nuts have been in the
base).
- Outside:The products can be directly fixed on the wall or other
flat boards with screws or nails via the screw holes in the base.
Outlet hole:
- Holes can be opened or not on the box as customers' requirements
,and installing cable gland can bring with better waterproof
performance.
- Holes can be chosen according to the cable diameter from the
existing holes on the box .and installing cable gland can bring
with better waterproof performance.
| Model Code | Hole QTY | (mm)
Hole Size | IP | (KG)
G. Weight | (KG)
G. Weight |
Qty/Carton | Carton Dimension |
|
| HXB-RA/B 50x50 | 4 | 25 | 55 | 13.5 | 12.3 | 300 | 46*38*51 |
| HXB-RA/B 80x50 | 4 | 25 | 55 | 14.7 | 13.4 | 240 | 53*35*62 |
| HXB-RA/B 85x85x50 | 7 | 25 | 55 | 17.2 | 16 | 200 | 53*41*53 |
| HXB-RA/B 100x100x70 | 7 | 25 | 65 | 14.9 | 13.5 | 100 | 62*49*35 |
| HXB-RA/B 150x110x70 | 10 | 25 | 65 | 15.1 | 13.8 | 60 | 67*33*46.5 |
| HXB-RA/B 150x150x70 | 8 | 25 | 65 | 16.3 | 15 | 60 | 84.5*34*45 |
| HXB-RA/B 200x100x70 | 8 | 25 | 65 | 16.6 | 15.3 | 60 | 61*46*42 |
| HXB-RA/B 200x155x80 | 10 | 36 | 65 | 14.5 | 13.2 | 40 | 69.5*43.5*42 |
| HXB-RA/B 200x200x80 | 12 | 36 | 65 | 18 | 16.6 | 40 | 90*46*40.5 |
| HXB-RA/B 255x200x80 | 12 | 36 | 65 | 21.9 | 20.1 | 40 | 55*45*78.5 |
| HXB-RA/B 255x200x120 | 12 | 36 | 65 | 21.9 | 20.1 | 30 | 64*55*62 |
| HXB-RA/B 300x250x120 | 12 | 36 | 65 | 20.3 | 18.4 | 20 | 61.5*55.5*63 |
| HXB-RA/B 400x320x120 | 16 | 36 | 65 | 15 | 13.3 | 10 | 74.5*42.5*61.5 |
Product Introduction
Waterproof metal cable gland type:
Large type cable gland, large range type cable gland, small range
type cable gland, length type cable gland, strengthened type cable
gland, direct type cable gland, multiple-entry type cable gland,
high temperature resistance type cable gland, double locking type
cable gland, spiral type cable gland, 90º flexible pipe connector,
EMC cable gland, and explosion proof cable gland, etc.
Nylon cable gland type:
Conventional type cable gland, split type cable gland, anti bending
cable gland, corrugated tubing cable gland, nylon union for
flexible pipe, hose cable gland, etc.
Marine cable gland:
DCG single compression type cable gland, JIS standard type cable
gland, TJ clamping type cable gland and TH welded type cable gland,
etc.
Flexible Pipe type:
PP/PA flexible pipe, metal flexible pipe, bellows fixed frame, etc.
Vent valve series:
Breathable vent plug and breathable cable gland, etc.
Accessories:
Brass reducer, brass enlarger, standard locknut, EMC locknut, brass
screw plug and waterproof junction box, etc.
