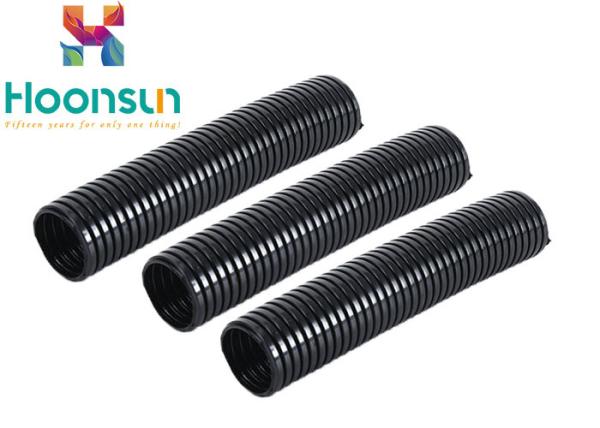

AD10 Nylon PA / PP / PE Flexible Cable Protection Pipe
Material
PP (polyethylene)
Temperature
-30 ℃ -110 ℃, short time to 130 ℃.
Color
Black, other colors can be customized.
Product certification
European CE, European environmental ROHS
Characteristics
Soft and flexible, anti twist; good mechanical strength, can bear
heavy load; acid resistance, cuttings liquid, lubricating oil,
coolant and so on; surface gloss, friction resistance; black
resistance to ultraviolet light, high mechanical strength
Application
Can protect wire and cable from external wear and insulation load.
Ability
It can withstand the pressure of foot and higher strength without
deformation, but it can recover quickly and there is no damage to
itself.
Applications
Wind power generation, subway track, electric locomotive
compartment use; mechanical manufacturing, electrical insulation
protection, public transportation equipment; lighting equipment;
automobile manufacturing, aviation equipment and so on;
Usage
Wire and cable will be inserted into the pipe, and then use the
series of hose connectors.
This product has a high hardness.
| Code | Conduit size | d
Inner size | D
Outer size | Bengding radius | Dynamic Radius |
| HX-PA-10.0 | AD10.0 | 1/4" | 6.50 | 10.00 | 16 | 35 |
| HX-PA-11.6 | AD11.6 | | 8.00 | 11.60 | 16 | 35 |
| HX-PA-13.0 | AD13.0 | 5/16" | 10.00 | 13.00 | 20 | 45 |
| HX-PA-15.8 | AD15.8 | 3/8" | 12.00 | 15.80 | 30 | 60 |
| HX-PA-18.5 | AD18.5 | | 14.30 | 18.50 | 40 | 70 |
| HX-PA-21.2 | AD21.2 | 1/2" | 17.00 | 21.20 | 45 | 75 |
| HX-PA-25.0 | AD25.0 | | 20.00 | 25.00 | 45 | 75 |
| HX-PA-28.5 | AD28.5 | 3/4" | 23.00 | 28.50 | 50 | 110 |
| HX-PA-34.5 | AD34.5 | 1" | 29.00 | 34.50 | 60 | 115 |
| HX-PA-42.5 | AD42.5 | 1-1/4" | 36.00 | 42.50 | 70 | 120 |
| HX-PA-54.5 | AD54.5 | 2" | 48.00 | 54.50 | 90 | 150 |
Usage method
Plastic hose is used to make bearings, cams, cams, bevel gear,
various roller, pulley, pump impeller, fan blade, worm wheel,
propeller, screw, nut, cushion, high pressure seal, oil proof
gasket, oil resistant container, shell, hose, cable sheath, sheared
pulley sleeve, bullhead planer slider, Electromagnetic distribution
valve seat, cold aging equipment, liner, bearing cage, automobile
and tractor all kinds of oil pipe, piston, rope, transmission belt,
textile machinery industry equipment Zero fog material, as well as
daily necessities and packaging film and so on.
1. hose and hose assembly can only be used for conveying the
designed materials, otherwise the service life or failure will be
reduced.
2. the hose and hose assembly can only be used within its
acceptable range and should not be used under the pressure of over
design working pressure.
3. the medium temperature of hose and hose assembly should not
exceed -40 C - +120 C, otherwise it will shorten its life. ,
4. hose and hose assembly should not be used less than the minimum
bending radius of the hose to avoid bending or bending near the
pipe joint, otherwise the hydraulic transmission and delivery of
material or damage will be obstructed.
Rubber hose assembly.
5. hose and hose assembly shall not be used under torsion.
6. hoses and hose assemblies should be handled with care in
transportation. They must not be dragged on sharp or rough
surfaces, nor can they be folded or squashed.
7. hose and hose assembly should be kept clean, cleaned internally,
prevented foreign objects from entering, damaged equipment.
In the industrial production of plastic hose, it is used to make
bearings, cams, cams, bevel gears, all kinds of roller, pulley,
pump impeller, fan blade, worm wheel, propeller, screw, nut,
gasket, oil resistant seal, oil resistant seal gasket, oil
resistant container, shell, hose, cable sheath, sheared pulley
sleeve, bullhead The planer slider, the electromagnetic
distribution seat, the cold aging equipment, the liner, the bearing
cage, the various oil pipelines on the car and the tractor, the
piston, the rope, the transmission belt, the zero fog material of
the textile machinery industrial equipment, and the daily
necessities and packaging films.
