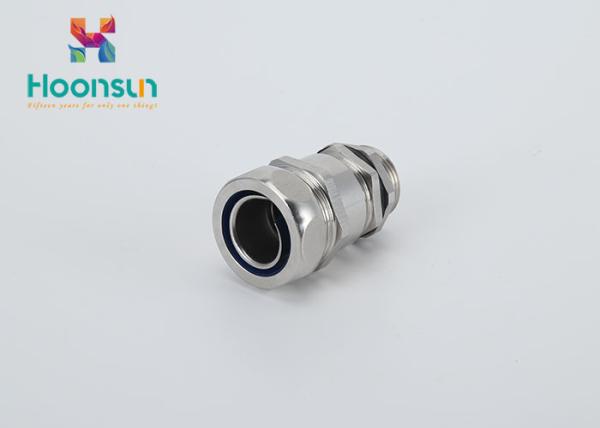

Split Type Stainless Steel Fittings SS304 / SS316L For Joining Pipe Lines

Material: SS304/SS316L/ brass nickel plating

Sealing parts: modified rubber

Sheath: galvanized iron / stainless steel

Sealing sleeve: TPE

Protection grade: IP65

Composition: nut, lining ring, metal ring, screw body, locking inner core, bushing, sealing ring and lock mother (sun hat).

Thread standard: metric M thread, British G thread, American Standard NPT thread, German standard PG thread and so on, which can be customized according to customer requirements.

Usage method:

1. take the screw cap and the lining ring on the end of the hose.

2. screw the metal ring opening along the thread of the hose into the hose.

3. the screw and the nut are connected.

4. Pass the wire and cable in the hose through the locking core.

5. take the lock mother, put one end of the screw thread into the hole of the equipment, lock the mother fixed from the inside, or remove the lock mother, and screw the outer thread of the body to the inner thread which needs to be connected.

6. purpose: used for connection of metal wire protection tube and motor, equipment, inlet hole, inner thread and so on, and locking cable.

Production introduction:

Metal hose connector is a high-quality flexible pipe in modern industrial pipelines.

It mainly consists of corrugated pipe, net sleeve and joint.

Its inner pipe is a thin-walled stainless steel corrugated pipe with spiral or annular shape,

and the net cover of the outer layer of the corrugated pipe is woven by stainless steel wire

or steel strip according to certain parameters. The connectors or flanges at both ends of the hose

are matched with the connectors or flanges of the customer's pipe.

The bellows of the hose is made of extremely thin-walled seamless

or multi-welded stainless steel pipe through high precision plastic processing.

Due to the elastic characteristics of the bellows profile,

the hose has good flexibility and fatigue resistance,

which makes it easy to absorb various cyclic loads of movement and deformation,

especially in the pipeline system, it has the ability to compensate for large displacement.
