Waterproof IP65 Brass Cable Gland For Electrical Junction Box ROHS
/ ISO Certification
Product Name:

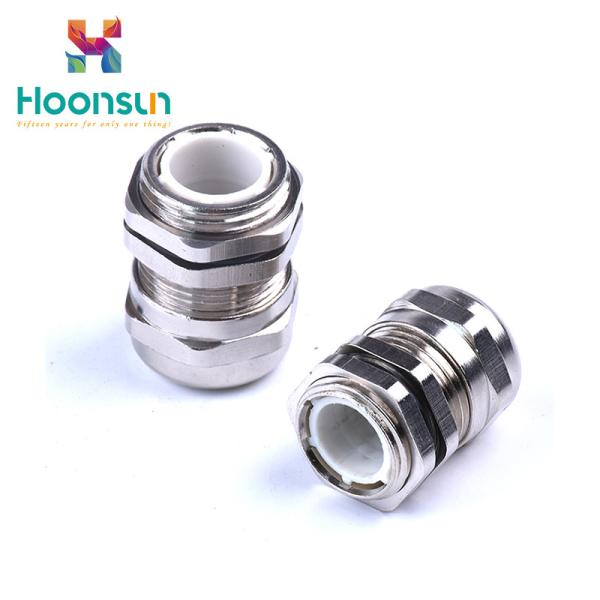

direct type metal cable gland
Product structure:
sealing nut, seal, claw, body, O-ring and nut.
Product material:
brass, nylon plastic PA66, UL94-V2, NBR/silicone rubber
Surface treatment:
electroplating (nickel plating)
Features:
the clamping claw is as long as the body, and the seal is shorter
than the other products. The design makes the inner core more
stable, the fixed cable is more stable and the cable is not easy to
move. However, due to the special design of the seals and clamping
claw sealing is reduced, so this product under the limit
conditions, the waterproof effect is weaker than other products.
Product certification:
CE certification, RoHS certification and REACH certification
Product performance:
waterproof, dustproof, tensile and corrosion resistant.
Temperature:
Static:-40℃ to 110 ℃ , short time to 120 ℃
Dynamic:-20 ℃ to 80 ℃ , short time to 100 ℃
Applicantion:day indoor for use with all types of swaextruded
bending cable
| Item | Range
Φ mm | Tread Length
GL mm | Thread O.D.
AG mm | Joint Length
H mm | Spanner size
mm | Code |
| M12×1.5 | 3-6.5 | 6.5 | 12 | 17 | 14 | HX-NTM12 |
| M16×1.5 | 4-8 | 8 | 16 | 19 | 18 | HX-NTM16 |
| M18×1.5 | 5-10 | 8 | 18 | 21 | 20 | HX-NTM18 |
| M20×1.5 | 6-12 | 8 | 20 | 22 | 22 | HX-NTM20 |
| M22×1.5 | 10-14 | 8 | 22 | 23 | 24 | HX-NTM22 |
| M25×1.5 | 10-14 | 9 | 25 | 25 | 24/27 | HX-NTM25-14 |
| M25×1.5 | 13-18 | 9 | 25 | 27 | 30/27 | HX-NTM25-18 |
| M27×1.5 | 13-18 | 9 | 27 | 27 | 30 | HX-NTM27 |
| M32×1.5 | 15-22 | 10 | 32 | 29 | 35 | HX-NTM32 |
| M36×1.5 | 18-25 | 10 | 36 | 31 | 40 | HX-NTM36 |
| M40×1.5 | 18-25 | 10 | 40 | 31 | 40/45 | HX-NTM40-25 |
| M40×1.5 | 22-30 | 10 | 40 | 35 | 45 | HX-NTM40-30 |
| M48×1.5 | 25-33 | 10 | 48 | 37 | 50/52 | HX-NTM48 |
| M50×1.5 | 32-38 | 10 | 50 | 37 | 57/55 | HX-NTM50 |
| M63×1.5 | 37-44 | 10 | 63 | 38 | 64/68 | HX-NTM63 |
| M72×2 | 42-52 | 10 | 72 | 44 | 78 | HX-NTM72 |
| M80×2 | 55-60 | 15 | 80 | 45 | 88 | HX-NTM80 |
Usage method
the connector can lock the cable, and the other end can be
connected to the upper part of the equipment box, or screw thread
can also be selected.
access to the import and export of the internal thread on the
electric equipment. General mechanical control box, distribution
plate, machine.
the equivalent wire and cable can be used to clamp the cable and
achieve the purpose of waterproofing.
the main function is to make the line unobstructed, to keep the
cable sealed, and to ensure the insulation level of the cable joint
to ensure its safe and reliable operation. If the sealing is bad,
not only will the oil leakage cause the drying of the oil
impregnated paper, but also the moisture will intrude into the
cable, causing the insulation performance of the paper to decrease.
Main function
Keep the line unobstructed, keep the cable sealed, ensure the
insulation grade at the cable connector of the cable certificate,
and ensure its safe and reliable operation. If the seal is not
good, it will not only cause the oil-immersed paper to dry up due
to oil leakage, but also moisture will invade the inside of the
cable, which will reduce the insulation performance of the paper.
