Especial Silver Spiral Cable Gland PG7 - PG21 With Anti Bending
Spring
External material: PA66/ brass nickel plating / stainless steel 304/316L
Inner core: Nylon flame retardant UL94-V2
Seal: silicone rubber
Hermetic ring: NBR, silicone rubber, etc.
O-ring: NBR, silicone rubber, etc.
Protection degree: IP68
Working temperature: - 40 C to 100 C, short time to 120 C
Use of cable gland:
Our cable gland has a wide range of uses, including not only common
circuits, electric boxes, LED lights, and manufacturing industries,
but also the robotics industry, wind energy industry, charging pile
industry, solar industry and other industries.
| Thread | Range | GL | Mounting hole | H | Spanner size | Code |
| Metal |
| PG7 | 3-6.5 | 6.5 | 12.5 | 65.0 | 14/15 | HX-NZPG7 |
| PG9 | 4-8 | 8 | 15.2 | 68.0 | 17/18 | HX-NZPG9 |
| PG11 | 5-10 | 8 | 18.6 | 75.0 | 20/21 | HX-NZPG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 75.0 | 22/23 | HX-NZPG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 80.0 | 24/25 | HX-NZPG16 |
| PG21 | 13-18 | 9 | 28.3 | 100.0 | 30 | HX-NZPG21 |
| M12*1.5 | 3-6.5 | 6.5 | 12 | 65 | 14 | HX-NZM12 |
| M16*1.5 | 4-8 | 8 | 16 | 75 | 18 | HX-NZM16 |
| M18*1.5 | 5-10 | 8 | 18 | 77 | 20 | HX-NZM18 |
| M20*1.5 | 6-12 | 8 | 20 | 80 | 22 | HX-NZM20 |
| M22*1.5 | 10-14 | 8 | 22 | 98 | 24 | HX-NZM22 |
| M25*1.5 | 13-18 | 9 | 25 | 90 | 27 | HX-NZM25 |
| M30*1.5 | 13-18 | 9 | 25 | 100 | 30 | HX-NZM30 |
| Nylon |
| M12 | 3-6.5 | 9 | 12 | 65 | 18/16 | HX-NLZM12 |
| M16 | 4-8 | 9 | 16 | 75 | 22/19 | HX-NLZM16 |
| M18 | 5-10 | 9 | 18 | 77 | 24/22 | HX-NLZM18 |
| M20 | 6-11 | 10 | 20 | 80 | 27/24 | HX-NLZM20 |
| M22 | 10-13 | 10 | 22 | 98 | 30/27 | HX-NLZM22 |
| M25 | 12-15 | 12 | 25 | 90 | 31/28 | HX-NLZM25 |
| M27 | 13-18 | 12 | 27 | 100 | 35/33 | HX-NLZM27 |
Product certification:
European CE certification, European ROHS certification, European
REACH certification
1. precision thread, tightly connected
2. seal rubber ring, effective seal, strong waterproof
Product details:
1. our thread specifications are metric thread, German thread,
American thread and British thread.
2. the product material includes nickel plated brass (stainless
steel) shell, nylon inner core, nitrile rubber and silicone rubber
seal.
3. within the specified limits, with the sealing ring to tighten
the nut, the protection level can reach IP68.

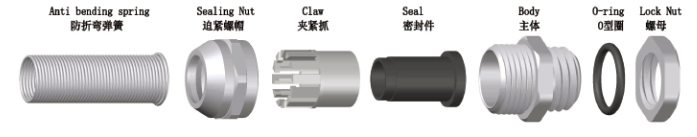

4. inner core unique clamping claw and sealing ring are mutually
buckled and designed to tighten the nut to improve the tensile
performance.
5. our products can be waterproof, dustproof, salt resistant, acid
and alkali resistant, alcohol, grease and other general solvents.
6., it can adapt to bad environment such as offshore operations,
mine machinery and chemical equipment.
