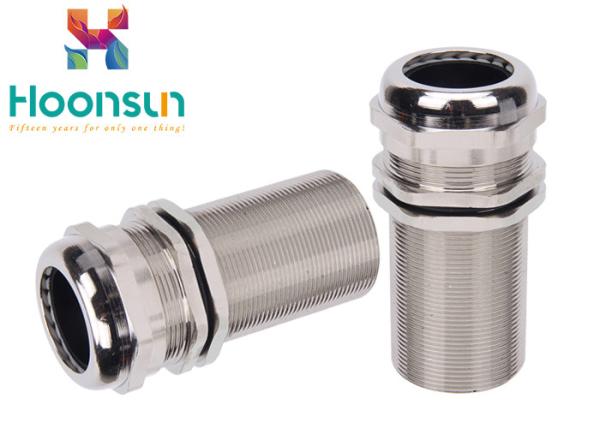

M25 Metal Length Type Brass Cable Glands For 13-18mm Wire
Meticulous selection of materials
The main material is brass plated nickel, the paws are made of
nylon PA66, locking parts and sealing rings are made of butyl
rubber.
Professional design
The special process clamping jaw and the sealing part are designed
to match the fastening device, which saves time and is more
convenient.
Strong temperature resistance
The working temperature ranges from 40 to 100 degrees, or short to
120 degrees.
Five advantages
a) Corrosion resistance: nickel plating on the surface, high corrosion
resistance
b) High quality: Waterproofing grade reaches IP68, short time can
withstand temperature of 120 degrees Celsius.
c) High hardness: the hardness is 2 times higher than copper and 10
times higher than that of aluminum
d) No pollution: no harmful substances released, non-toxic and
pollution-free.
e) No rust: Super oxidation resistance, no rust in wet environment.
| Thread | Range | GL | Thread O.D.
mm | H
Joint Length
mm | Spanner size | Code |
| M12×1.5 | 3-6.5 | 10 | 12 | 17 | 14 | HX-NPM12L |
| M16×1.5 | 4-8 | 12 | 16 | 19 | 18 | HX-NPM16L |
| M18×1.5 | 5-10 | 12 | 18 | 21 | 20 | HX-NPM18L |
| M20×1.5 | 6-12 | 12 | 20 | 22 | 22 | HX-NPM20L |
| M22×1.5 | 10-14 | 12 | 22 | 23 | 24 | HX-NPM22L |
| M25×1.5 | 10-14 | 12 | 25 | 25 | 24/27 | HX-NPM25-14L |
| M25×1.5 | 13-18 | 12 | 25 | 27 | 30/27 | HX-NPM25-18L |
| M32×1.5 | 15-22 | 15 | 32 | 29 | 35 | HX-NPM32L |
| M40×1.5 | 18-25 | 15 | 40 | 31 | 40/45 | HX-NPM40-25L |
| M40×1.5 | 22-30 | 15 | 40 | 35 | 45 | HX-NPM40-30L |
| M50×1.5 | 32-38 | 15 | 50 | 37 | 57/55 | HX-NPM50L |
| M63×1.5 | 37-44 | 18 | 63 | 38 | 64/68 | HX-NPM63L |
Product Introduction
a) Waterproof metal cable gland type:Large type cable gland, large
range type cable gland, small range type cable gland, length type
cable gland, strengthened type cable gland, direct type cable
gland, multiple-entry type cable gland, high temperature resistance
type cable gland, double locking type cable gland, spiral type
cable gland, 90º flexible pipe connector, EMC cable gland, and
explosion proof cable gland, etc.
b) Nylon cable gland type:Conventional type cable gland, split type
cable gland, anti bending cable gland, corrugated tubing cable
gland, nylon union for flexible pipe, hose cable gland, etc.
c) Marine cable gland:DCG single compression type cable gland, JIS
standard type cable gland,TJ clamping type cable gland and TH
welded type cable gland, etc.
d) Flexible Pipe type:PP/PA flexible pipe, metal flexible pipe,
bellows fixed frame, etc.
e) Vent valve series:Breathable vent plug and breathable cable gland,
etc.
f) Accessories:Brass reducer, brass enlarger, standard locknut, EMC
locknut,brass screw plug and waterproof junction box, etc.
FAQ
Q: Are you trading company or manufacturer?
A: We are the factory. Also we can export the goods by ourselves.
Q: How long is your delivery time?
A: Generally we can send out the the goods within 3-7 days if the
goods are in stock.
Or it is should be 7-30 days if the goods are not in stock, it is
according to your order quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay
the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance,
balance before shipment.
Q: How about the after-sale service?
A: Any feedback or comments are welcomed.
We will try to make the best assistant to let you maximum
satisfaction.
