Brand Name : | Hnx Waterproof Junction Box |
Model Number : | HXB-RA 100x100x70 |
Certification : | RoHS, CE |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union, |
Supply Ability : | 30000 Pieces/Day |
Delivery Time : | 3-30 Day |

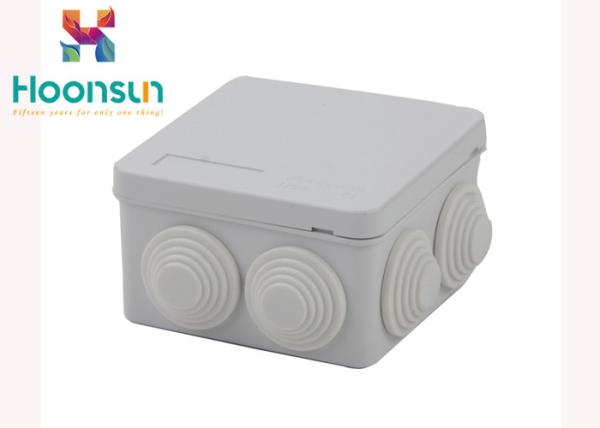

White Waterproof Junction Box Cable Gland With PVC Stopper IP65
Installation method:
Body material :
ABS or PC
Stopper material :
PVC
Material characteristics:
Impact,heat,low temperature and chemical resistance,excellent
electrical performance and surface gloss,etc.
Certificates:
CE,ROHS
Protection grade:
IP65
Application:
Suitable for indoor and outdoor electric,communication,fire
fighting apparatus,iron and steel smelting,petrochemical
industry,electron,power system,railway,building,mine,air and sea
port,hotel,ship,works,waste water treatment equipment,environment
equipment nad so on.
Installation:
1.Inside:There are the installation holes in the base for circuit
board or din rail(More than 2 pcs of M4 brass nuts have been in the
base).
2.Outside:The products can be directly fixed on the wall or other
flat boards with screws or nails via the screw holes in the base.
Outlet hole:
1 : Holes can be opened or not on the box as customers'
requirements ,and installing cable gland can bring with better
waterproof performance.
2. : Holes can be chosen according to the cable diameter from the
existing holes on the box .and installing cable gland can bring
with better waterproof performance.
Model Code | Hole QTY | Hole Size | IP | G. Weight | G. Weight | Qty/Carton | Carton Dimension |
HXB-RA 50x50 | 4 | 25 | 55 | 13.5 | 12.3 | 300 | 46*38*51 |
HXB-RA 80x50 | 4 | 25 | 55 | 14.7 | 13.4 | 240 | 53*35*62 |
HXB-RA 85x85x50 | 7 | 25 | 55 | 17.2 | 16 | 200 | 53*41*53 |
HXB-RA 100x100x70 | 7 | 25 | 65 | 14.9 | 13.5 | 100 | 62*49*35 |
HXB-RA 150x110x70 | 10 | 25 | 65 | 15.1 | 13.8 | 60 | 67*33*46.5 |
HXB-RA 150x150x70 | 8 | 25 | 65 | 16.3 | 15 | 60 | 84.5*34*45 |
HXB-RA 200x100x70 | 8 | 25 | 65 | 16.6 | 15.3 | 60 | 61*46*42 |
HXB-RA 200x155x80 | 10 | 36 | 65 | 14.5 | 13.2 | 40 | 69.5*43.5*42 |
HXB-RA 200x200x80 | 12 | 36 | 65 | 18 | 16.6 | 40 | 90*46*40.5 |
HXB-RA 255x200x80 | 12 | 36 | 65 | 21.9 | 20.1 | 40 | 55*45*78.5 |
HXB-RA 255x200x120 | 12 | 36 | 65 | 21.9 | 20.1 | 30 | 64*55*62 |
HXB-RA 300x250x120 | 12 | 36 | 65 | 20.3 | 18.4 | 20 | 61.5*55.5*63 |
HXB-RA 400x320x120 | 16 | 36 | 65 | 15 | 13.3 | 10 | 74.5*42.5*61.5 |
Company introduction
Yueqing hongxiang connector manufacturing co., ltd.is a
professional manufacturer of various specifications of wire and
cable connectors. The main product is a metal cable waterproof
connector with a protection grade of ip68.It has the
characteristics of large clamping cable range, strong tensile
force, waterproof, dustproof,salt resistance, acid and alkali
resistance, alcohol resistance, grease and common solvents,
etc.Other products include anti-electromagnetic cable connector,
porous cable waterproof connector, marine stuffing box, reducer
head, brass plug ca
Our service
We welcome customers to provide us with suggestions related to
products.
Any question can be told to us by email or telephone, and we will
handle it for you in a timely manner.
Quick and accurate delivery.
We ensure the quality of our products is excellent.
Products can be customized according to specific requirements.
![]() |
