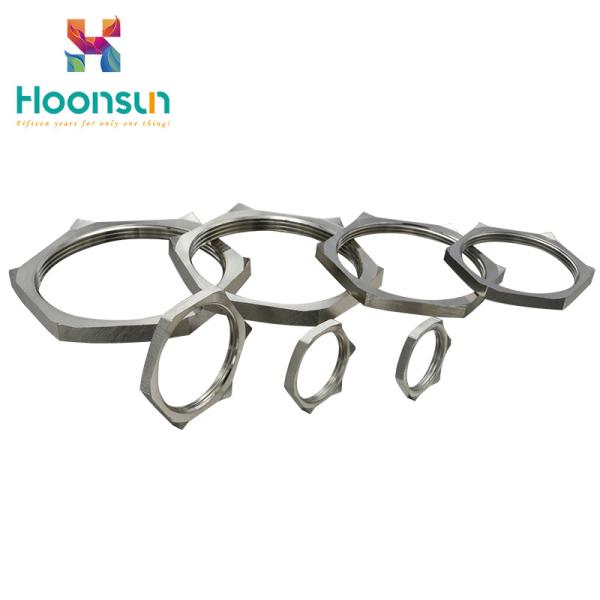

Metallic Color Cable Gland Anti EMC Locknut With Electrical
Fittings
Material: nickel-plated brass
Application:for use with most electrical fittings
Performance:
scraping the protective layer on the top of the body through 6
sharp corners on the nut, and contacting the conductive layer to
generate static electricity.
Usage method:
As the normal nut is used, the nut is wriggled directly. In the
continuous tightening process, the protective layer of the nut
squirt can achieve the effect of electrostatic conduction.
| Item | GL
mm | Height H
mm | Spanner Size
mm |
| M12*1.5 | HX-LNM12EMC | 3 | 14 |
| M14*1.5 | HX-LNM14EMC | 3 | 17 |
| M16*1.5 | HX-LNM16EMC | 3 | 18 |
| M18*1.5 | HX-LNM18EMC | 3 | 20 |
| M20*1.5 | HX-LNM20EMC | 3 | 22 |
| M22*1.5 | HX-LNM22EMC | 3.2 | 24 |
| M24*1.5 | HX-LNM24EMC | 3.5 | 27 |
| M25*1.5 | HX-LNM25EMC | 3.5 | 27 |
| M27*1.5 | HX-LNM27EMC | 4 | 30 |
| M30*1.5 | HX-LNM30EMC | 4 | 32 |
| M32*1.5 | HX-LNM32EMC | 4 | 35 |
| M33*1.5 | HX-LNM33EMC | 4 | 36 |
| M36*1.5 | HX-LNM36EMC | 4 | 40 |
| M37*1.5 | HX-LNM37EMC | 4 | 40 |
| M40*1.5 | HX-LNM40EMC | 4.5 | 45 |
| M42*1.5 | HX-LNM42EMC | 5 | 45 |
| M47*1.5 | HX-LNM47EMC | 5.5 | 50 |
| M48*1.5 | HX-LNM48EMC | 5.5 | 52 |
| M50*1.5 | HX-LNM50EMC | 5.5 | 55 |
| M54*1.5 | HX-LNM54EMC | 5.5 | 57 |
| M60*1.5 | HX-LNM60EMC | 6 | 64 |
| M63*1.5 | HX-LNM63EMC | 6 | 68 |
| M64*2 | HX-LNM64EMC | 6 | 68 |
| M72*2 | HX-LNM72EMC | 8.5 | 78 |
| M75*2 | HX-LNM75EMC | 8.5 | 78 |
| M80*2 | HX-LNM80EMC | 9 | 88 |
| M88*2 | HX-LNM88EMC | 9 | 94 |
| M100*2 | HX-LNM100EMC | 9 | 110 |
| Item | GL
mm | Height H
mm | Spanner Size
mm |
| PG7 | HX-LNPG7/EMC | 3 | 15 |
| PG9 | HX-LNPG9/EMC | 3 | 18 |
| PG11 | HX-LNPG11/EMC | 3 | 21 |
| PG13.5 | HX-LNPG13.5/EMC | 3 | 23 |
| PG16 | HX-LNPG16/EMC | 3.2 | 25 |
| PG19 | HX-LNP19/EMC | 3.5 | 27 |
| PG21 | HX-LNPG21/EMC | 4 | 30 |
| PG25 | HX-LNPG25/EMC | 4 | 35 |
| PG29 | HX-LNPG29/EMC | 4 | 40 |
| PG36 | HX-LNPG36/EMC | 5.5 | 50 |
| PG42 | HX-LNPG42/EMC | 6 | 57 |
| PG48 | HX-LNPG48/EMC | 6.5 | 64 |
| PG63 | HX-LNPG63/EMC | 8.5 | 78 |
| G1/2 | HX-LNG1/2EMC | 3 | 23 |
| G3/4 | HX-LNG3/4EMC | 4 | 30 |
| G1 | HX-LNG1EMC | 4 | 40 |
| G1-1/4 | HX-LNG1-1/4EMC | 5.5 | 50 |
| G1-1/2 | HX-LNG1-1/2EMC | 5.5 | 57 |
| G2 | HX-LNG2EMC | 6 | 64 |
| G2-1/2 | HX-LNG2-1/2EMC | 8.5 | 78 |
| G3 | HX-LNG3EMC | 9 | 94 |
| NPT1/2 | HX-LNNPT1/2EMC | 3 | 23 |
| NPT3/4 | HX-LNNPT3/4EMC | 4 | 30 |
| NPT1 | HX-LNNPT1EMC | 4 | 40 |
| NPT1-1/4 | HX-LNNPT1-1/4EMC | 5.5 | 50 |
| NPT1-1/2 | HX-LNNPT1-1/2EMC | 5.5 | 57 |
| NPT2 | HX-LNNPT2EMC | 6 | 64 |
| NPT2-1/2 | HX-LNNPT2-1/2EMC | 8.5 | 78 |
| NPT3 | HX-LNNPT3EMC | 9 | 94 |
product introduction
| Cable gland | Waterproof metal cable gland type | Large type cable gland, large range type cable gland, small range
type cable gland, length type cable gland, strengthened type cable
gland, direct type cable gland, multiple-entry type cable gland,
high temperature resistance type cable gland, double locking type
cable gland, spiral type cable gland, 90º flexible pipe connector,
EMC cable gland, and explosion proof cable gland, etc. |
| Nylon cable gland type | Conventional type cable gland, split type cable gland, anti bending
cable gland, corrugated tubing cable gland, nylon union for
flexible pipe and hose cable gland, etc. |
| Marine cable gland type | DCG single compression type cable gland, JIS standard type cable
gland, TJ clamping type cable gland and TH welded type cable gland,
etc. |
| Others | Flexible Pipe type | PP/PA flexible pipe, metal flexible pipe, bellows fixed frame, etc. |
| Vent valve series | Breathable vent plug and breathable cable gland, etc. |
| Accessories | Brass reducer, brass enlarger, standard locknut, EMC locknut, brass
screw plug and waterproof junction box, etc. |
Company profile
Hongxiang - waterproof joint with high cost performance.The road is
the place where you walk, and pioneering and innovating are as
usual.Yueqing hongxiang connector manufacturing co., ltd. is a
professional manufacturer of various specifications of wire and
cable connectors. The main product is a metal cable waterproof
connector with a protection grade of ip68. it has the
characteristics of large clamping cable range, strong tensile
force, waterproof, dustproof, salt resistance, acid and alkali
resistance, alcohol resistance, grease and common solvents, etc.
Other products include anti-electromagnetic cable connector, porous
cable waterproof connector, marine stuffing box, reducer head,
brass plug cap, etc.
