JIS Type Marine Cable Gland Chromium Plated Single Compression Type
Product material
copper cap iron column
Thread specification
metric ( m ) imperial ( g )
Working temperature
static temperature - 40 ℃ ~ + 100 ℃, short time up to + 120 ℃
Dynamic - 20 ℃ ~ + 80 ℃, short-term up to + 100 ℃
Protection level
IP54
Product features
the welding stuffing box is used to lock the cable on the ship's
bulkhead
or on the cabinet body of the electric control cabinet,
and is sealed with epoxy resin cement. It has the advantages of
simple structure, low cost, various forms,
firm installation, convenient use, good sealing effect and the
like.
Application field
widely used in various explosion-proof places such as petroleum and
chemical industry,
especially in offshore platforms and ship explosion-proof places.
Usage
this VO - th type welding stuffing box is an explosion-proof
accessory for high-quality cables.
it is installed at the connection between the cable port and
explosion-proof electrical equipment
and plays a role of sealing and explosion-proof for incoming cables
and fixed positions.
it has the advantages of superior explosion-proof performance, safe
and reliable structure,
simple and convenient installation, high protection level, etc.
With higher requirement of stability & acid-alkali proof in order
to work under tough condition.

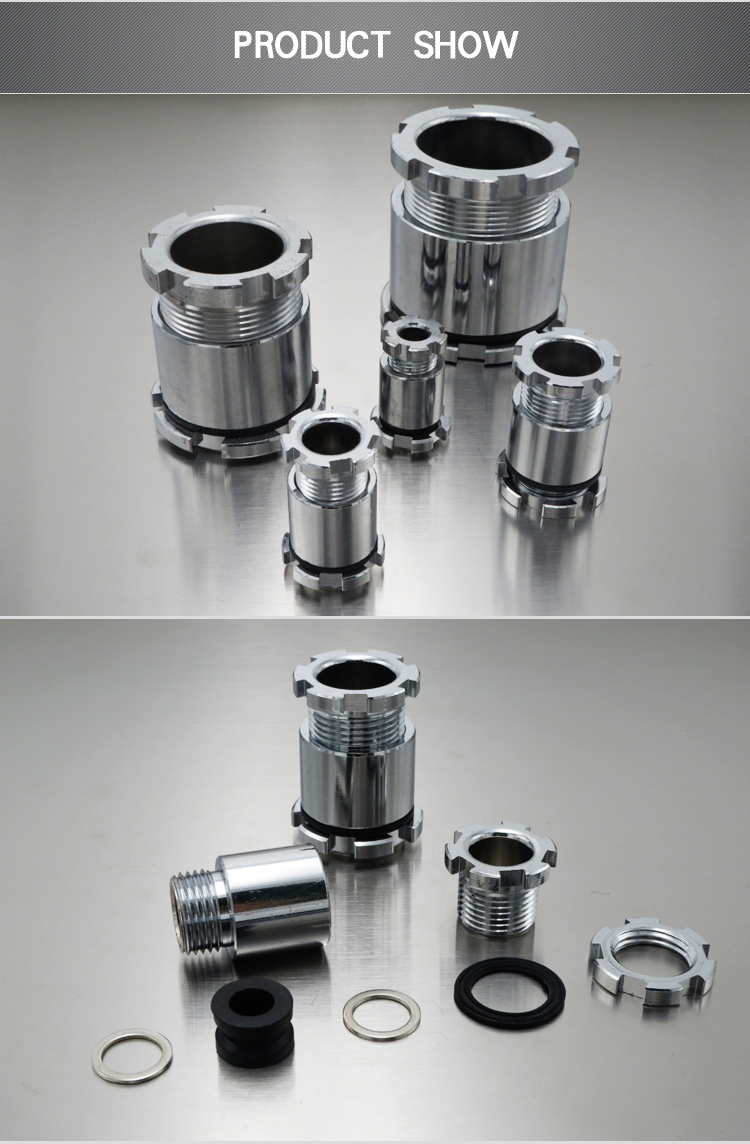

Lock nut,Washer,Body,Sealing Nut are made of chromium plated
brass,Seal is made of NBR.
Protect cable from water,chemical and dust.Perfect clamping design
provides
the best performance of this cable gland,makes it suitable for
outdoor or indoor application,marine and machines.
| Item | Thread | Range
(mm) | GL
Thread Length
(mm) | AG
Thread O.D.
(mm) | Spanner size
(mm) | Code |
| JIS 10 | 3/8〃 | 6-7 | 11 | 16.6 | Φ22/28 | HX-JIS10A |
| 7-8 | HX-JIS10B |
| JIS 15 | 1/2〃 | 8-9 | 11 | 20.9 | Φ28/31 | HX-JIS15A |
| 9-10 | HX-JIS15B |
| 9-10 | HX-JIS15C |
| JIS 20 | 3/4〃 | 11-12 | 11 | 26.4 | Φ34/37 | HX-JIS20A |
| 12-13 | HX-JIS20B |
| 12-15 | HX-JIS20C |
| JIS 25 | 1〃 | 15-16 | 11 | 33.2 | Φ41/45 | HX-JIS25A |
| 16-18 | HX-JIS25B |
| 16-20 | HX-JIS25C |
| JIS 30 | 1-1/4〃 | 20-22 | 12 | 41.9 | Φ49/56 | HX-JIS30A |
| 22-24 | HX-JIS30B |
| 22-26 | HX-JIS30C |
| JIS 35 | 1-1/2〃 | 26-28 | 12 | 47.8 | Φ56/62 | HX-JIS35A |
| 28-30 | HX-JIS35B |
| 28-30 | HX-JIS35C |
| JIS 40 | 30-32 | 47.8 | HX-JIS40A |
| 32-34 | HX-JIS40B |
| 32-34 | HX-JIS40C |
| JIS 45 | 2〃 | 34-36 | 12 | 59.6 | Φ68/76 | HX-JIS45A |
| 36-38 | HX-JIS45B |
| 36-40 | HX-JIS45C |
| JIS 50 | 40-42 | 59.6 | HX-JIS50A |
| 42-44 | HX-JIS50B |
| 42-44 | HX-JIS50C |
| JIS 55 | 2-1/2〃 | 44-46 | 12 | 75.1 | Φ84/94 | HX-JIS55A |
| 46-48 | HX-JIS55B |
| 46-50 | HX-JIS55C |
| JIS 60 | 50-52 | 75.1 | HX-JIS60A |
| 52-54 | HX-JIS60B |
| 52-56 | HX-JIS60C |
| JIS 65 | 3〃 | 56-58 | 14 | 88 | Φ98/112 | HX-JIS65A |
| 58-60 | HX-JIS65B |
| JIS 70 | 60-62 | 88 | HX-JIS70A |
| 62-64 | HX-JIS70B |
| JIS 75 | 64-66 | 88 | HX-JIS75A |
| 66-70 | HX-JIS75B |
