    Strain Relief Spiral Type Nylon Cable Gland Waterproof IP68 Protection

    Ask Lasest Price
    Brand Name : Hnx nylon cable gland
    Model Number : MG type
    Certification : RoHS, CE, IP68
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 30000 Pieces/Day
    Delivery Time : 3-30 Day
    • Product Details
    • Company Profile

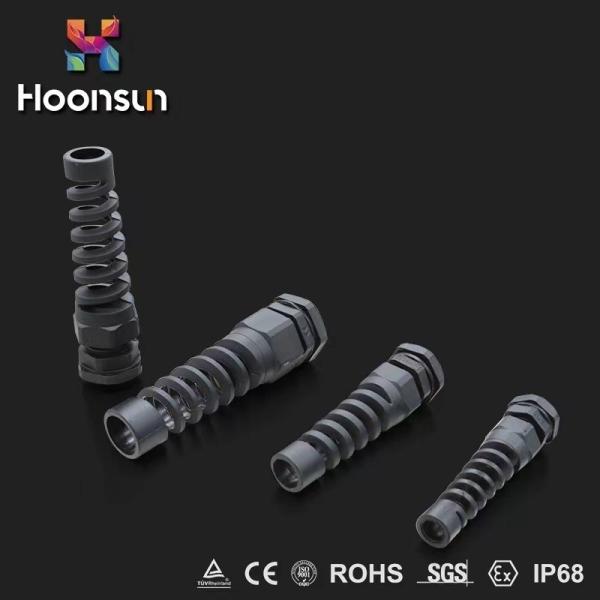

    Strain Relief Spiral Type Nylon Cable Gland Waterproof IP68 Protection

    Strain Relief Spiral Type Nylon Cable Gland Waterproof IP68 Protection


    Product detail

    • External material: PA66
    • Inner core: Nylon flame retardant UL94-V2
    • Seal: silicone rubber
    • Hermetic ring: NBR, silicone rubber, etc.
    • O-ring: NBR, silicone rubber, etc.
    • Protection degree: IP68
    • Working Temp :-40 ºC to 100 ºC . Short-Term to 120 ºC.


    Use of cable gland
    to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy

    Item

    ThreadRangeGLMounting holeHSpanner sizeCode
    Metal
    PG73-6.56.512.565.014/15HX-NZPG7
    PG94-8815.268.017/18HX-NZPG9
    PG115-10818.675.020/21HX-NZPG11
    PG13.56-12820.475.022/23HX-NZPG13.5
    PG1610-14822.580.024/25HX-NZPG16
    PG2113-18928.3100.030HX-NZPG21
    M12*1.53-6.56.5126514HX-NZM12
    M16*1.54-88167518HX-NZM16
    M18*1.55-108187720HX-NZM18
    M20*1.56-128208022HX-NZM20
    M22*1.510-148229824HX-NZM22
    M25*1.513-189259027HX-NZM25
    M30*1.513-1892510030HX-NZM30
    Nylon
    M123-6.59126518/16HX-NLZM12
    M164-89167522/19HX-NLZM16
    M185-109187724/22HX-NLZM18
    M206-1110208027/24HX-NLZM20
    M2210-1310229830/27HX-NLZM22
    M2512-1512259031/28HX-NLZM25
    M2713-18122710035/33HX-NLZM27


    Product Introduction
    Our products are divided into nylon cable glands and metal cable glands according to the gland material. The metal cable glands are also divided into brass cable glands, stainless steel cable glands and zinc alloy cable glands, etc.
    The cable gland is divided into waterproof cable gland, explosion-proof cable gland, anti bending cable gland, double locking cable gland, plastic hose cable gland, metal hose cable gland and marine stuffing box according to function.

    Usage:
    1. nylon cable waterproof connector is a supporting article for cables, which is mainly used in distribution boxes and distribution cabinets.
    The connector can lock the cable, and the other end can be connected to the upper part of the equipment box body, or can be threaded according to the selection.
    3. connect to electric equipment with internal threads at the inlet and outlet. General machinery control box, distribution board, machinery.
    4. when used for fixing wires and cables, it can effectively clamp cables and achieve the purpose of waterproof.
    5. according to the installation materials produced, they can be divided into heat shrink type ( the most commonly used type ), dry wrap type, epoxy resin pouring type and cold shrink type.
    6. according to the core material, it can be divided into copper core power cable connector and aluminum core power cable connector.
    7. the main function is to keep the line unobstructed, keep the cable sealed, and ensure the insulation grade at the cable joint, so as to ensure its safe and reliable operation. If the seal is not good, it will not only cause the oil-immersed paper to dry up due to oil leakage, but also moisture will invade the inside of the cable, which will reduce the insulation performance of the paper.

    Company advantages:
    1. specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.
    2. automatic production of numerical control equipment, accurate and safe
    3. 2011 years become Liaoning "aircraft carrier" special waterproof connector supplier
