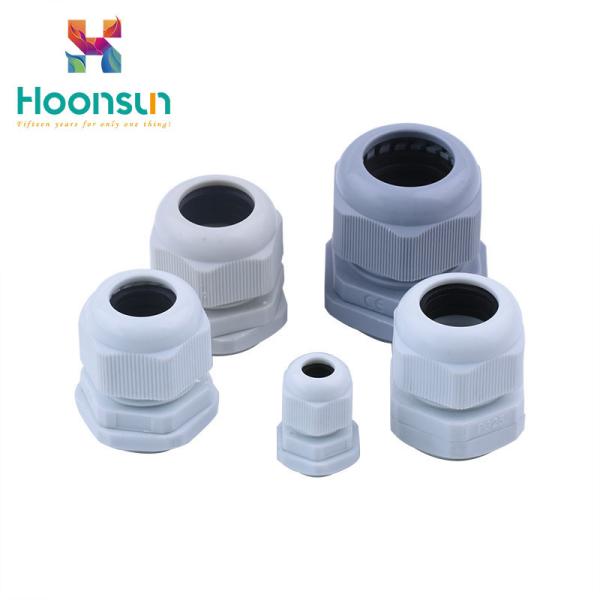

Fire Resistant PG16 Nylon Cable Gland Metric Series With Silicone Rubber Seal

Nylon cable gland PG

Product material: the main part of the cable waterproof gland is made of nylon, the clamping part is made of nylon plastic (PA), and the seal and O seal ring are made of NBR.

Product certification: European CE certification and IP68 certification

Protection level: in the range of the specified bayonet, use the O type seal ring to tighten the fastening head to IP68.

Working temperature: static: -40 ℃ to 100 ℃, short time to 120 ℃. Dynamic: -20 ℃ to 80 ℃, a short time of 100 ℃.

Thread length: short thread is suitable for the opening of thin machine plate or equipment with internal thread. Long thread is suitable for joining thick plank.

Product characteristics of cable waterproof gland

1> tighten the ring through special design, strong pulling force, no damage to the motor.

2> does not need to disassemble the cable waterproofing gland. The cable can be directly penetrated into the upper part of the cable.

3> waterproof, dust-proof, salt, weak acid, alcohol, oil, grease and general solvents, indoor and outdoor can be applied.

4> in the specified area of the bayonet, and use the O shaped seal ring to tighten the head to achieve the IP68 protection level.

Main function of nylon cable gland

Nylon cable gland are widely used in power, control, measuring instruments, data and communication cables. Their main uses make the lines open, keep the cables sealed, and play the role of anti loosening, skid proof, anti stripping, and sealing and waterproof.

The cable head of nylon cable is mainly used in power electronic control equipment, aviation communication, machine tool and equipment manufacturing, measurement control technology, instrument and instrument manufacturing and other industries, such as mechanical control box, distribution cabinet, electric motor, junction box, pump, LED lamps and other wires, and one end of nylon cable head can be connected to the equipment box. On the top of the hole, the other end is tightened and fixed by locking nut, or thread can be directly connected to the electric equipment with internal thread for import and export.

Usage:

1. nylon cable waterproof connector is a supporting article for cables, which is mainly used in distribution boxes and distribution cabinets.

The connector can lock the cable, and the other end can be connected to the upper part of the equipment box body, or can be threaded according to the selection.

3. connect to electric equipment with internal threads at the inlet and outlet. General machinery control box, distribution board, machinery.

4. when used for fixing wires and cables, it can effectively clamp cables and achieve the purpose of waterproof.

5. according to the installation materials produced, they can be divided into heat shrink type ( the most commonly used type ), dry wrap type, epoxy resin pouring type and cold shrink type.

6. according to the core material, it can be divided into copper core power cable connector and aluminum core power cable connector.

7. the main function is to keep the line unobstructed, keep the cable sealed, and ensure the insulation grade at the cable joint, so as to ensure its safe and reliable operation. If the seal is not good, it will not only cause the oil-immersed paper to dry up due to oil leakage, but also moisture will invade the inside of the cable, which will reduce the insulation performance of the paper.

Company advantages:

1. specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.

2. automatic production of numerical control equipment, accurate and safe

3. 2011 years become Liaoning "aircraft carrier" special waterproof connector supplier

Yueqing Hongxiang Connector Manufacturer Co.，Ltd was founded in 2006 with a registered capital of 5 million yuan. It is a high-tech company which integrating research and development, production and sales. There are more than 80 employees in the company and it is equipped with professional sales team and workshop management team.

The company is mainly aimed at the global sales of cable connectors and accessories for various materials. After more than ten years of development, it has provided thousands of customers with high-quality product experience . We always pursued the most cost-effective products.

The idea of company is “customer first : We solve the problems for customers in time ,due to the customer is the parents of food and clothing . Purse quality : only imperfect products, no critical customers. Be optimistic and positive : never give up when encountering difficulties and setbacks, and constantly motivation ourselves.” This mission is keeping improving the cable connector industry. We have established a good reputation in the industry and won the praise of all customers.

Since its establishment, the company has cooperated with many well-known enterprises, such as Yutong Bus, Xiangtan Electromechanical, PHILPS, OPPLE, ABB, etc. In 2011, we participated in the cooperation of China's first aircraft carrier “Liaoning”, and our high quality was recognized by country.

The company Firmly believes that product quality is the key to development. It is always implementing the national standard quality management system ISO9001, IATF16949. From now ,The company passed CE, ROHS, RECAH, TUV, ATEX, IP68 and other certifications.

The latest practical patent enables the product to achieve IP68 waterproof level. In order to sever our customers, we have specialized R&D teams to serve customers and professional testing centers for rigorous testing of products.
