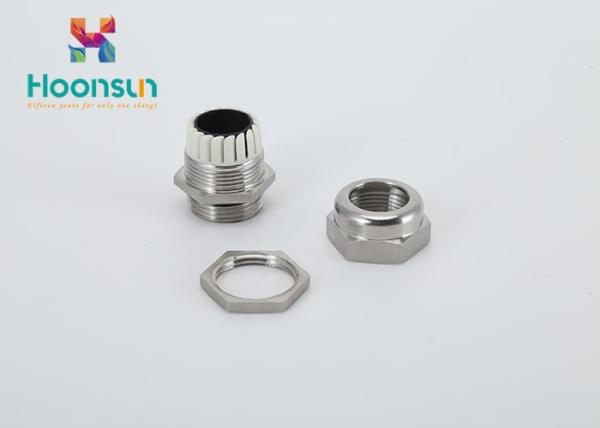

M20 Waterproof Metal Brass Cable Connector With 6-12mm Dia.
Specification
Item: M20*1.5
Range: 6-12mm
Thread length: 8mm
Thread O.D.: 20.0mm
Joint length: 21mm
Spanner size: 22mm
Code: HX-NPM20
Detail
Material: nickel-plated brass
Claw: PA(Nylon), UL94-V2
Hermetic seal: NBR, Silicone rubber
O-Ring: NBR, Silicone rubber
Protection degree: IP68-10bar
Temp: static state -40℃ to 100℃
Authentication: CE, RoHS, REACH
Product performance: waterproof, dustproof and corrosion
resistance. The diameter of the clamping hose is large and the
tensile strength is strong.
Under the condition of reasonable use of products, the waterproof
level can reach IP68.
This product can be waterproof, dustproof, corrosion resistant,
high hardness, and can work in damp, salt / acid / alkaline
environment.
Uses: to connect the LED lamp line interface, the laying of the
circuit cable, the connection of the electric box cable;
it can also be used in the cable connection of the manufacturing
industry equipment, the line connection of the robot industry,
the connection of the charging pile line, and the application in
the new industries such as wind energy and solar energy.
Other Items
| Item | Range
mm | GL
mm | Thread O.D.
mm | H
Joint Length
mm | Spanner size
mm | Code |
| M8×1 | 2-5 | 5 | 8.0 | 13.5 | 12 | HX-NPM8 |
| M10×1 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX-NPM10 |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 17 | 14 | HX-NPM12 |
| M14×1.5 | 4-8 | 8 | 14.0 | 18 | 17 | HX-NPM14 |
| M14×1.5 | 5-10 | 8 | 14.0 | 20 | 20/17 | HX-NPM14 |
| M16×1.5 | 4-8 | 8 | 16.0 | 19 | 18 | HX-NPM16 |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX-NPM18 |
| M20×1.5 | 6-12 | 8 | 20.0 | 21 | 22 | HX-NPM20 |
| M22×1.5 | 10-14 | 8 | 22.0 | 22 | 24 | HX-NPM22 |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX-NPM24 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX-NPM25-14 |
| M25×1.5 | 11-16 | 9 | 25.0 | 25 | 27 | HX-NPM25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 27 | 30/27 | HX-NPM25-18 |
| M27×1.5 | 13-18 | 9 | 27.0 | 27 | 30 | HX-NPM27 |
| M30×2 | 13-18 | 9 | 30.0 | 27 | 30/32 | HX-NPM30 |
| M32×1.5 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NPM32 |
| M33×2 | 15-22 | 10 | 33.0 | 29 | 35/36 | HX-NPM33 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NPM36 |
| M37×1.5 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NPM37 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NPM40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 35 | 45 | HX-NPM40-30 |
| M47×1.5 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NPM47 |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NPM50 |
| M60×1.5 | 37-44 | 14 | 60.0 | 38 | 64 | HX-NPM60 |
| M63×1.5 | 37-44 | 14 | 63.0 | 38 | 64/68 | HX-NPM63 |
